Cargo Bed Slide Drop Down Table Kit / Small

• This Cargo Bed Slide Drop Down Table Kit / Small creates a drop down table solution when fitted to your Cargo Bed Slide / Small, Cargo Bed Slide / Medium or Cargo Bed Slide / Large.

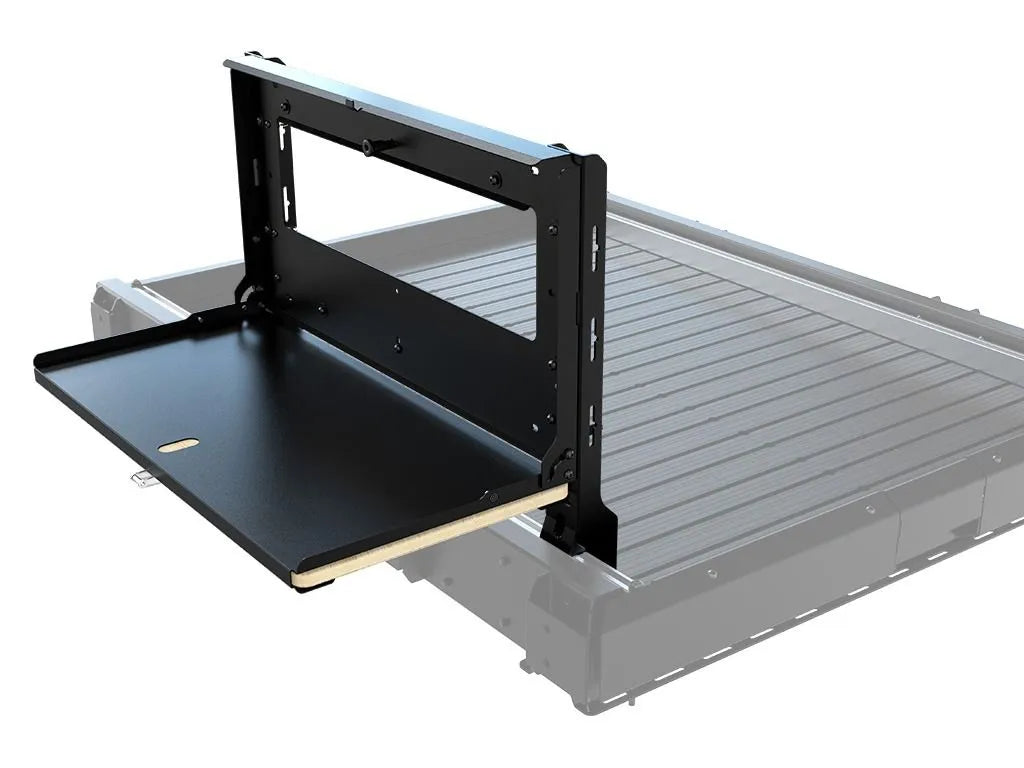

• The Drop Down Table opens downward when the latch is released and is supported by 2 sliding stays.
• The primary tray has a surface area of 648mm (25.5") L x 331mm (13") W.

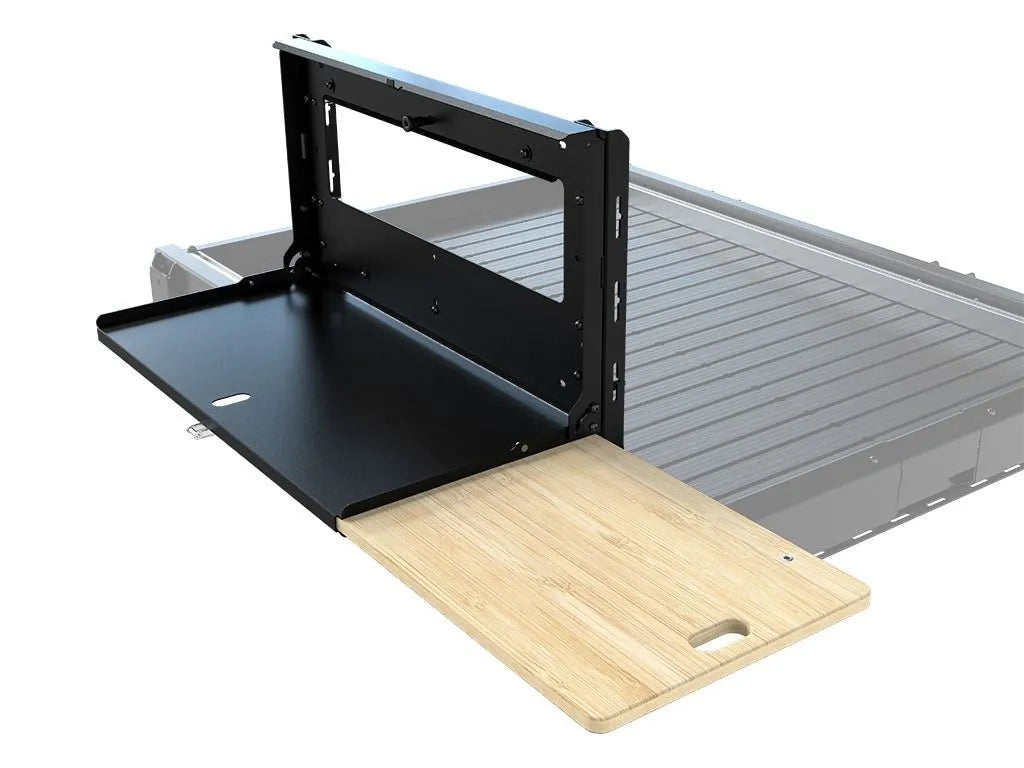

• The table surface area can be increased by an additional 445mm (17.5") in length by sliding out the 16mm work surface extension. This table tray extension can be changed to open either to the left or right.
• The latch keeps the table secure and rattle-free with the help of 4 adjustable stoppers.
• The mounting bracket bolts to the T-Slots of Cargo Bed Slide slats or the side profiles.
• Made of high strength steel and sealed with the same weather-resistant black powder coating as the Dometic Front Runner Series racks.
• Maximium load capacity of 40kg / 88 lbs.

Consists of:
1 x Table Assembly
2 x Arm Welded Assembly
2 x Aluminium Spacer
Installation Hardware
Fitment Guide

Materials used:
Black powder-coated high strength steel Brackets

Table Dimensions:

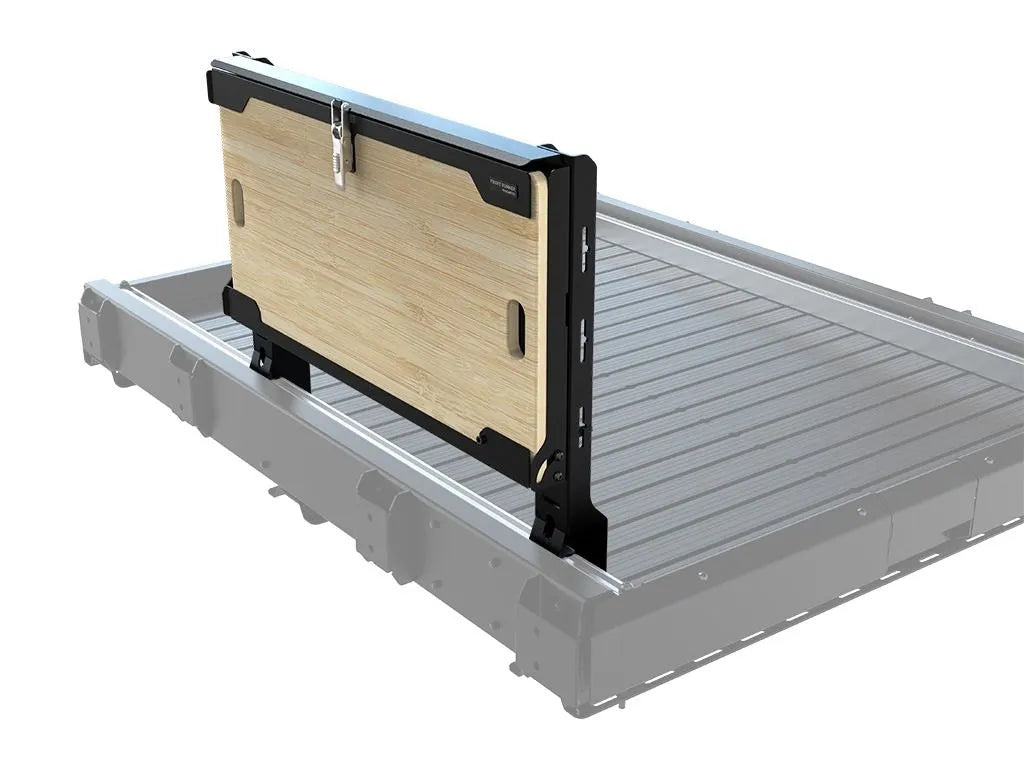

Closed Dimensions:
672mm (26.5") L x 65mm (2.6") W x 344mm (13.5") H
Width including latch: 85mm (3.3")

Fully Opened Dimensions:
1119mm (44.1") L x 350mm (13.8") W x 384mm (15.1") H

Mounting Bracket Dimensions:
64mm (2.5") L x 57mm (2.2") W x 470mm (18.5") H per Bracket

Weight:
11.8kg (26lbs)

Load Rating:
40kg (88.2lbs)
