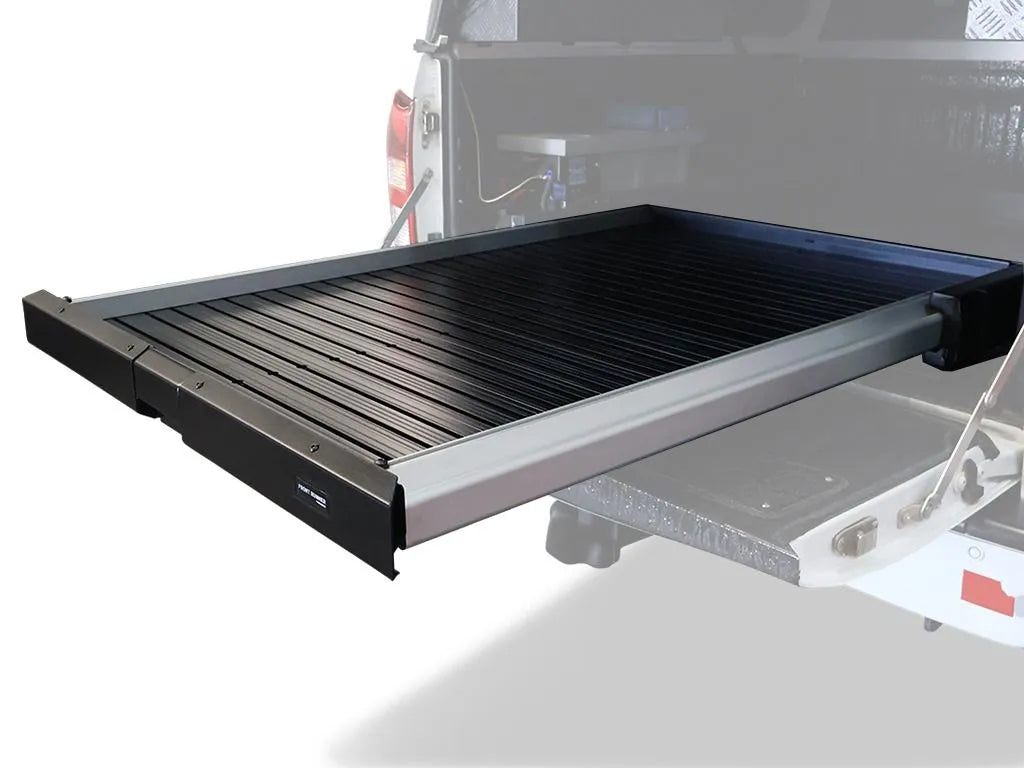

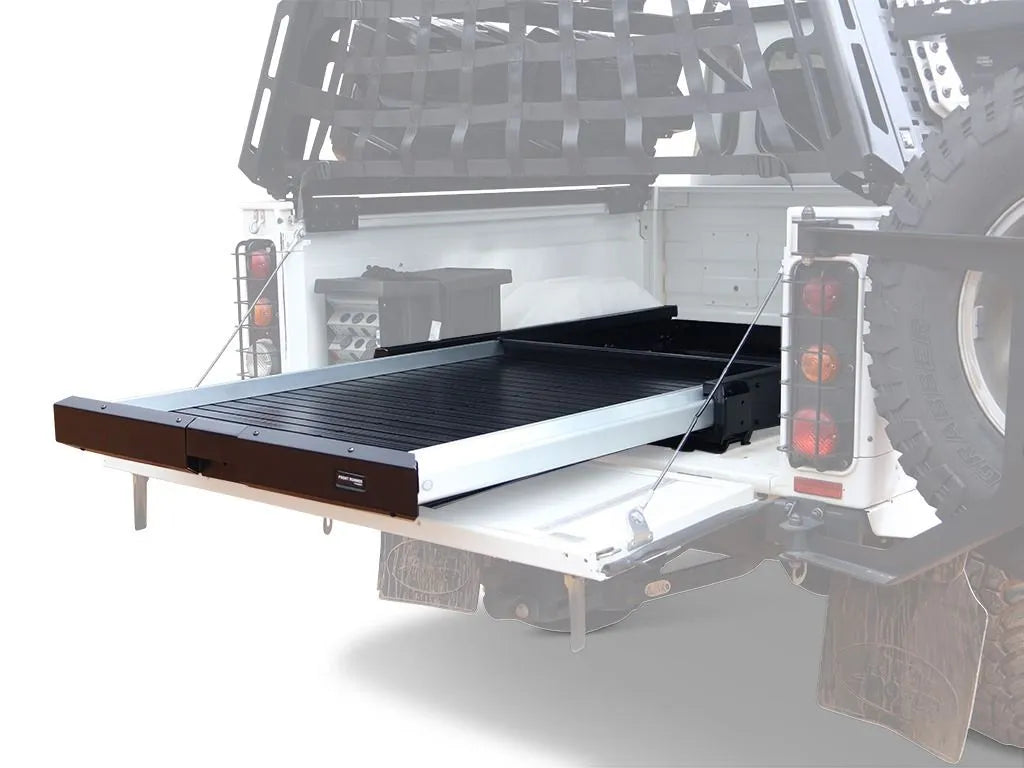

Cargo Bed Slide Kit / Small

• Improve access to your gear. Secure cargo, fridges and other accessories to the sliding deck, bringing your gear to you.
• Ergonomic handle allows for single handed operation.
• The sliding tray features a slat deck with the same t-slot pitch as your Front Runner Dometic roof rack to allow mounting of accessories such as Black Tie Down Rings / Eye Nuts, Wolf Pack Pro Rack Mounting Bracket / MKII or Adjustable Rack Cargo Chocks.
• The Cargo Slide / Small installs into the Load Bed of your vehicle. Bolt through or riv-nut installation options are available.
• Drilling is required to secure the base of the Cargo Slide Bed / Small to your Load Bed.
• Creates a loading area of 1200mm (5.5") L x 819mm (32.2") W.
• The cargo load area sits 85mm / 3.5" from load bed maximising cargo space utilization.
• High strength nylon wheels and sealed bearings allows the tray to smoothly extend out 832mm / 33", 70% from the anchored base.
• Three (3) locking positions allow the slide to hold in place when open, in a partially open and closed position.
• Rated for an evenly distributed load of 350kg / 771.6 lbs when being extended.
• Rated for an evenly distributed load of 500kg / 1102 lbs when locked in the closed position.
• Made of heat treated aluminium with anodised silver accents and mild steel ensures unmatched strength.
• Sealed in the same black powder-coating as Front Runner Dometic Racks to protect your Cargo Slide / Small from the elements.
• The Cargo Bed Slide has exterior mounting points to secure additional accessories.
• The weatherproof design enables installation onto open Load Beds as well as Load Beds fitted with a Front Runner Pro Bed Rack, canopy, camper shell, or other style load bed cover.

Note: This cargo slide will only fit certain sized load beds. Please see SPECS for exact product measurements and to determine if this product is the right fit.

Note: If a bin liner is installed, removal of this liner may be needed for installation.

Consists of:
1 x Cargo Bed Slide Bottom Frame / Small
1 x Cargo Bed Slide Tray / Small
Installation Hardware
Fitting Instructions

Materials used:
Black powder-coated aluminium
Anodised silver aluminium

Product Dimensions:
1284mm (50.6") L x 1025mm (40.4") W x 140mm (") H

Load Area:
1200mm (5.5") L x 819mm (32.2") W

Maximum Extension:
832mm (33") L

Weight:
50kg (110lbs)

Load Rating Closed:
500kg (1102lbs) Evenly Distributed

Load Rating Extended:
350kg (772lbs) Evenly Distributed
