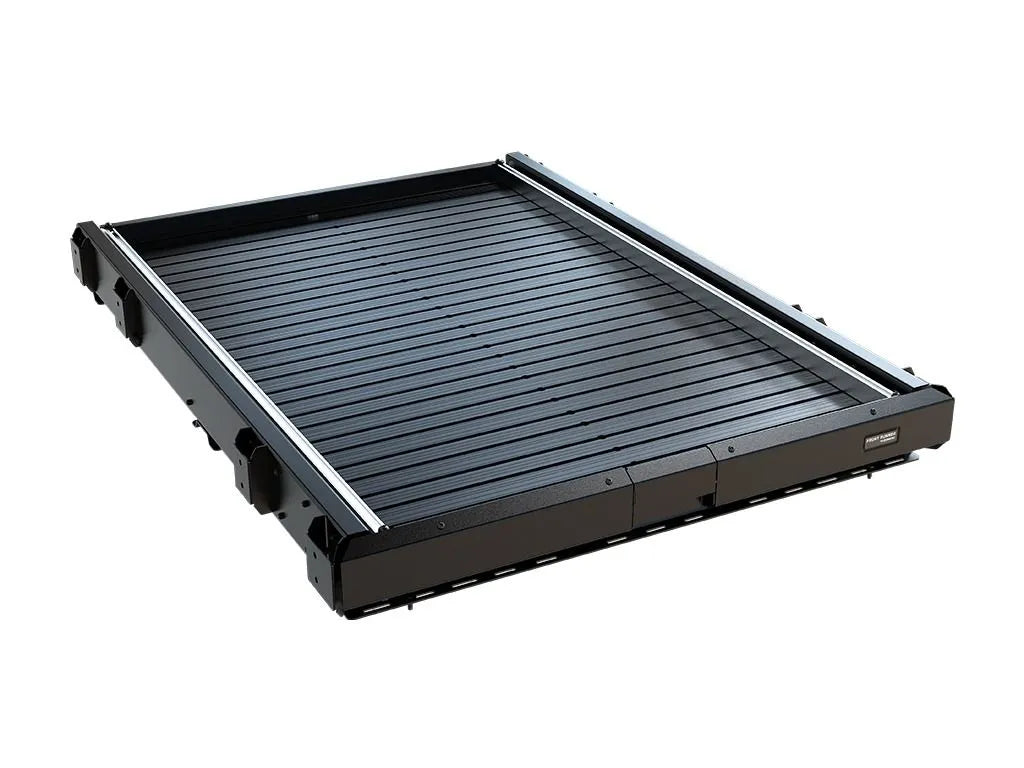

Cargo Bed Slide / Medium

• Improve access to your gear. Secure cargo, fridges and other accessories to the sliding deck, bringing your gear to you.

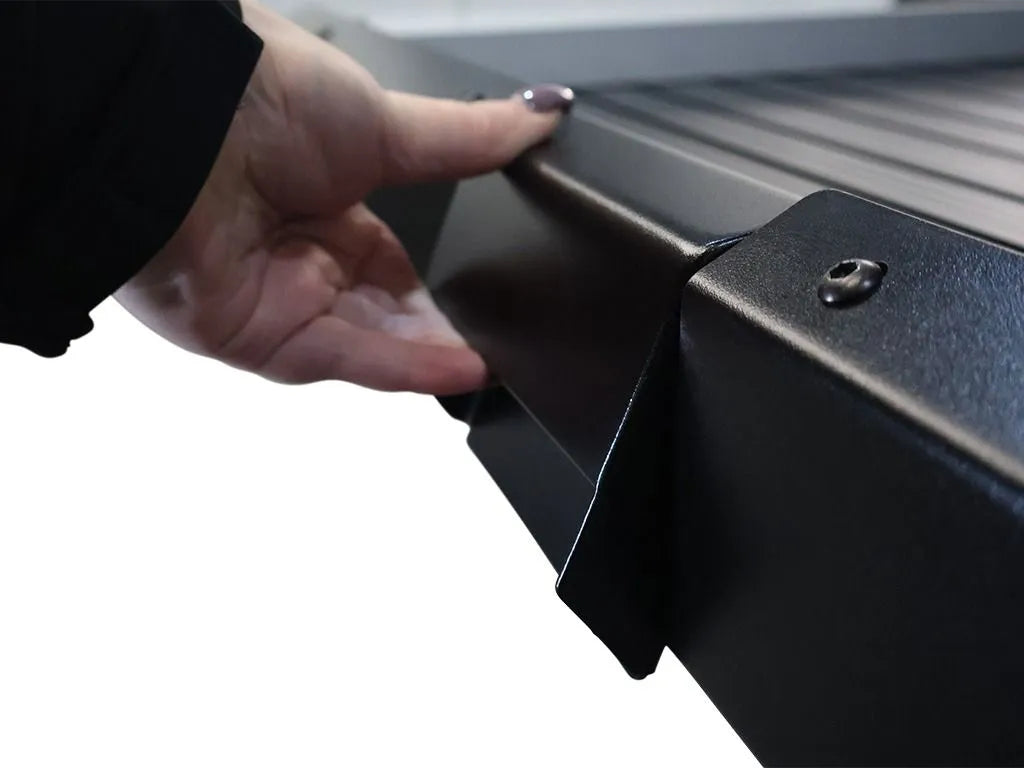

• Ergonomic handle allows for single handed operation.
• The sliding tray features a slat deck with the same t-slot pitch as your Front Runner Dometic roof rack to allow mounting of accessories such as Black Tie Down Rings / Eye Nuts, Wolf Pack Pro Rack Mounting Bracket / MKII or Adjustable Rack Cargo Chocks.

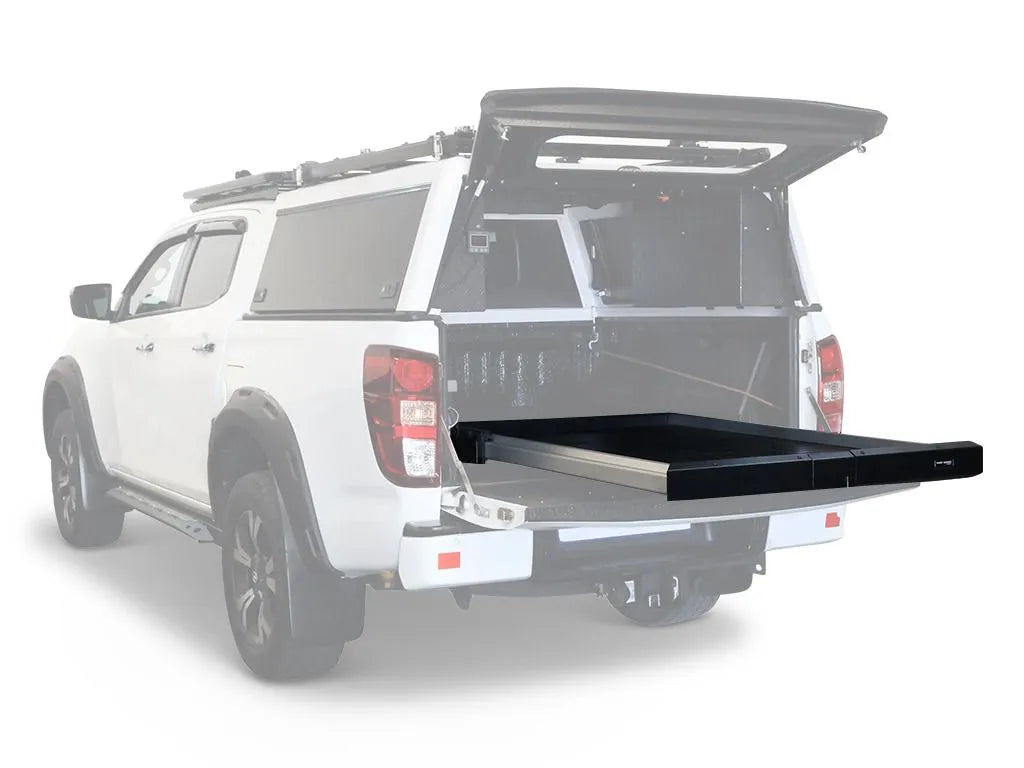

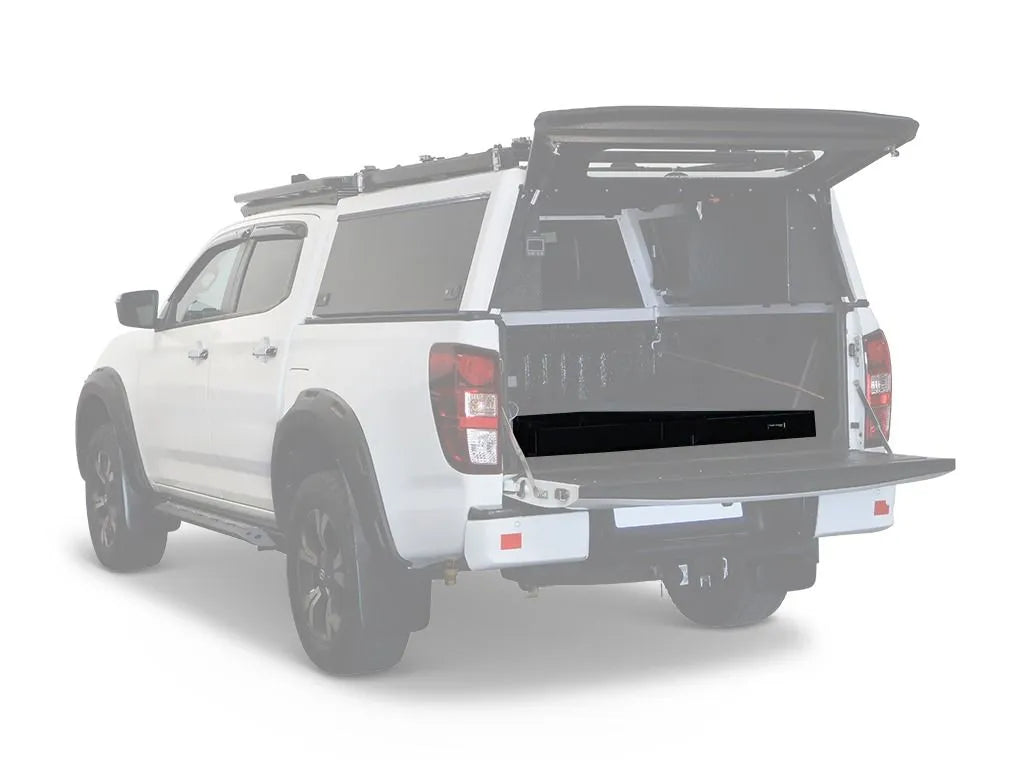

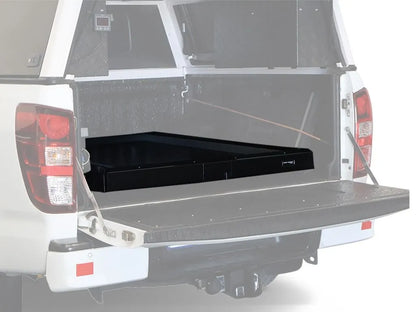

• The Cargo Slide / Medium installs into the Load Bed of your vehicle. Bolt through or riv-nut installation options are available.
• Drilling is required to secure the base of the Cargo Slide Bed / Medium to your Load Bed.
• Creates a loading area of 1402mm (55.2") L x 893mm (35.2") W.
• The cargo load area sits 85mm / 3.5" high from load bed maximising cargo space utilization.

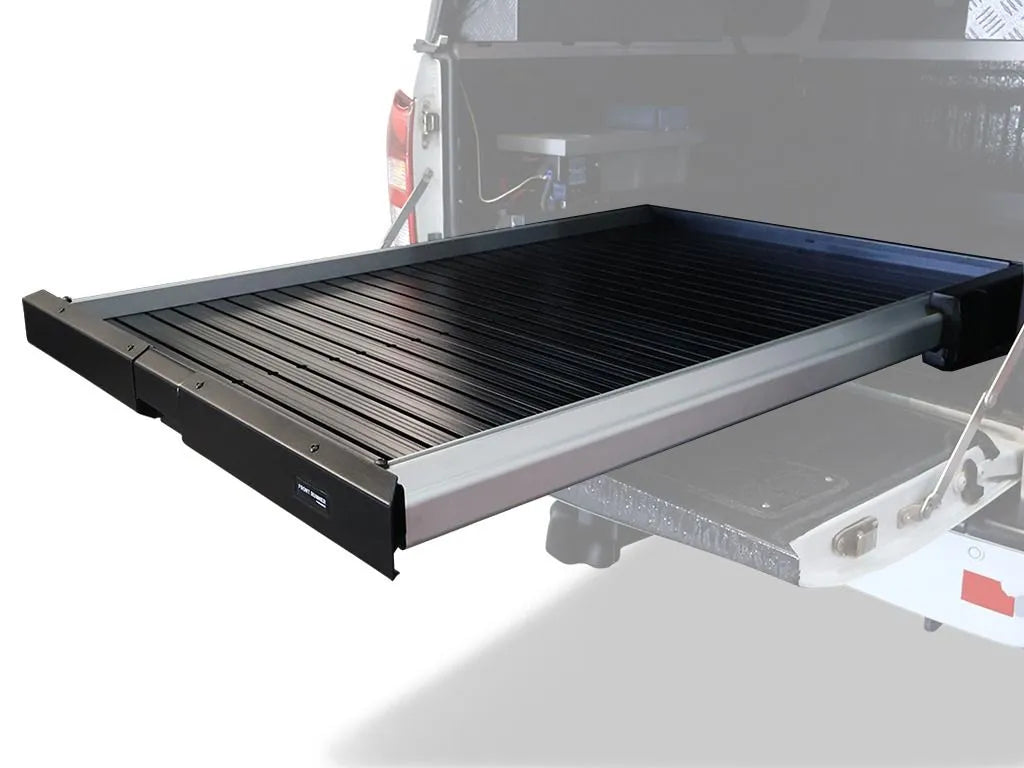

• High strength nylon wheels and sealed bearings allows the tray to smoothly extend out 1070mm/42", 73% from the anchored base.

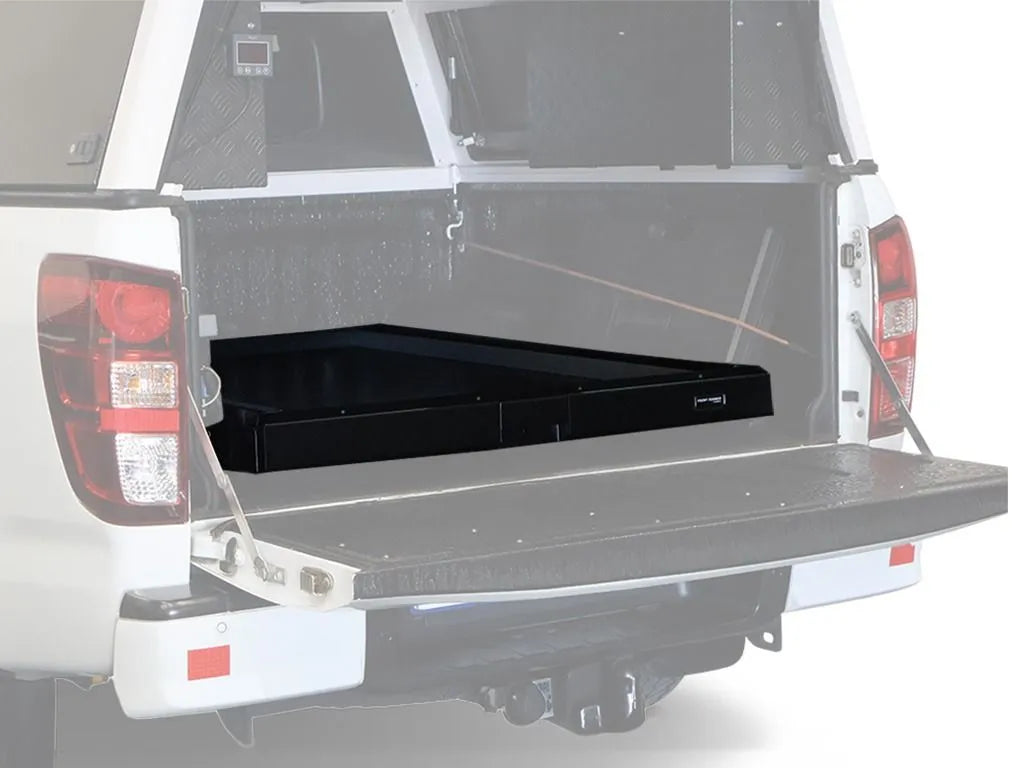

• Three (3) locking positions allow the slide to hold in place when open, in a partially open and closed position.
• Rated for an evenly distributed load of 350kg / 771.6 lbs when being extended.
• Rated for an evenly distributed load of 500kg / 1102 lbs when locked in the closed position.

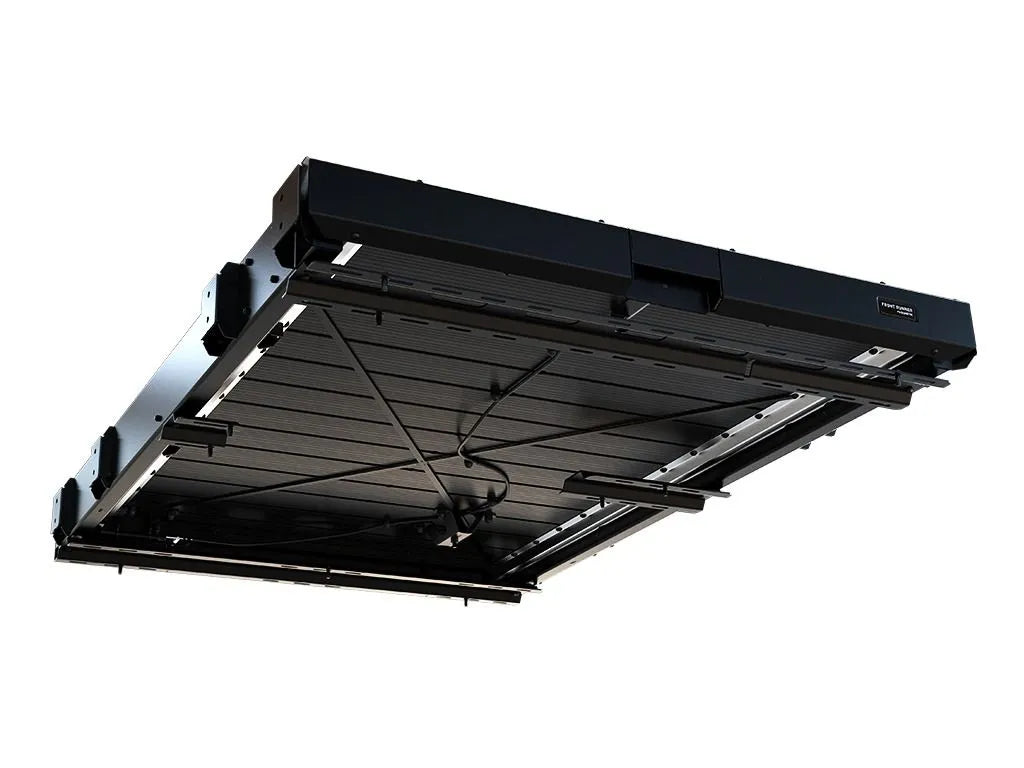

• Made of heat treated aluminium with anodised silver accents and mild steel ensures unmatched strength.

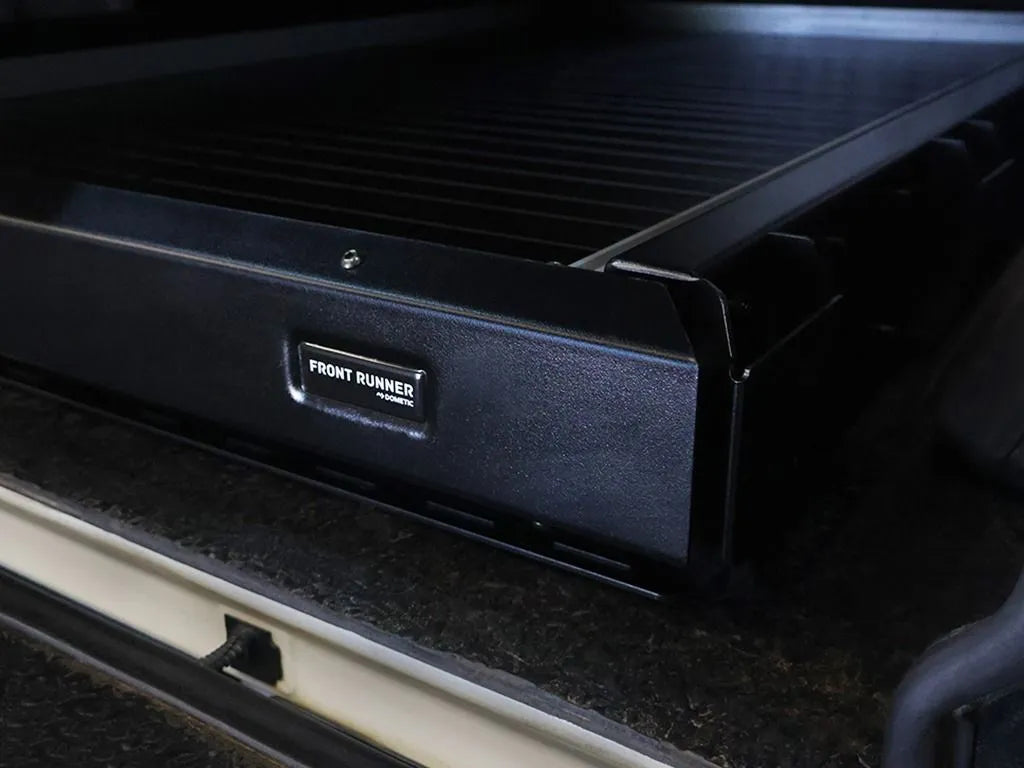

• Sealed in the same black powder-coating as Front Runner Dometic Racks to protect your Cargo Slide / Medium from the elements.
• The Cargo Bed Slide has exterior mounting points to secure additional accessories.
• The weatherproof design enables installation onto open Load Beds as well as Load Beds fitted with a Front Runner Pro Bed Rack, canopy, camper shell, or other style load bed cover.

Note: This cargo slide will only fit certain sized load beds. Please see SPECS for exact product measurements and to determine if this product is the right fit.

Note: If a bin liner is installed, removal of this liner may be needed for installation.

Consists of:

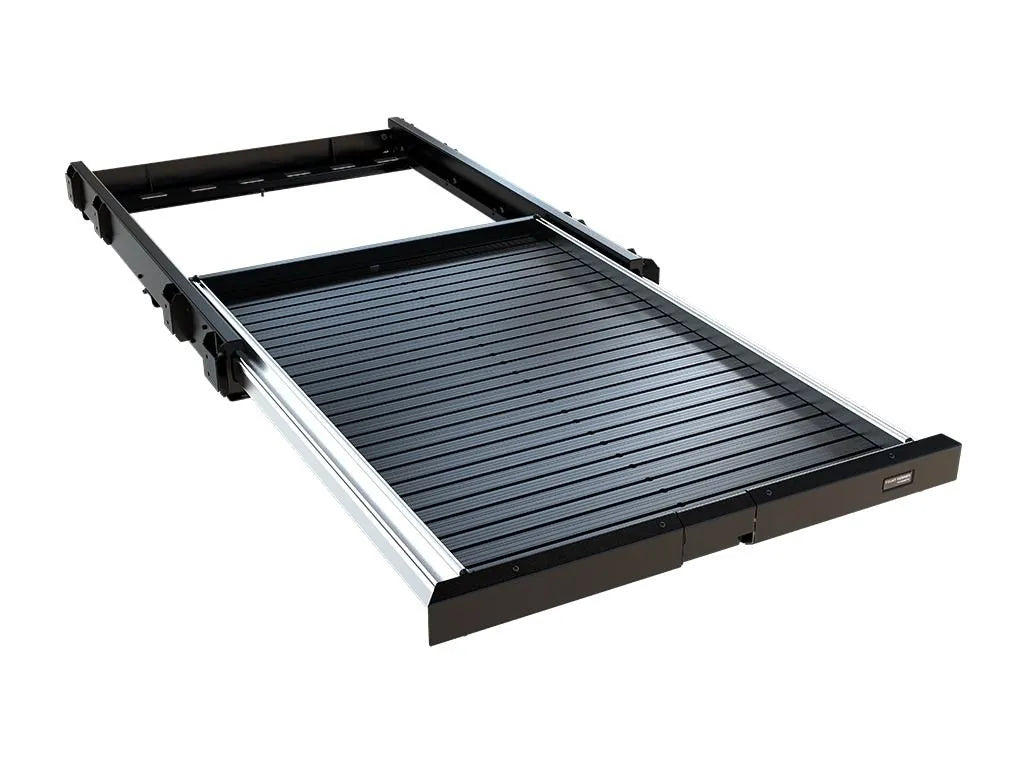

1 x Cargo Bed Slide Bottom Frame / Medium
1 x Cargo Bed Slide Tray / Medium
Fitting Instructions
Fitment Guide

Materials used:
Anodised silver & black powder-coated high strength steel

Product Dimensions:
Closed Dimensions:
1490mm (58.7") L x 1100mm (43.3") W x 140mm (5.5") H

Internal Dimensions:
1402mm (55.2") L x 893mm (35.2") W x 40mm (1.6") H
85mm (3.5") H (from Load bed)

Weight:
58kg (127.9 lbs)

Load Rating:
350kg (771.6 lbs)
