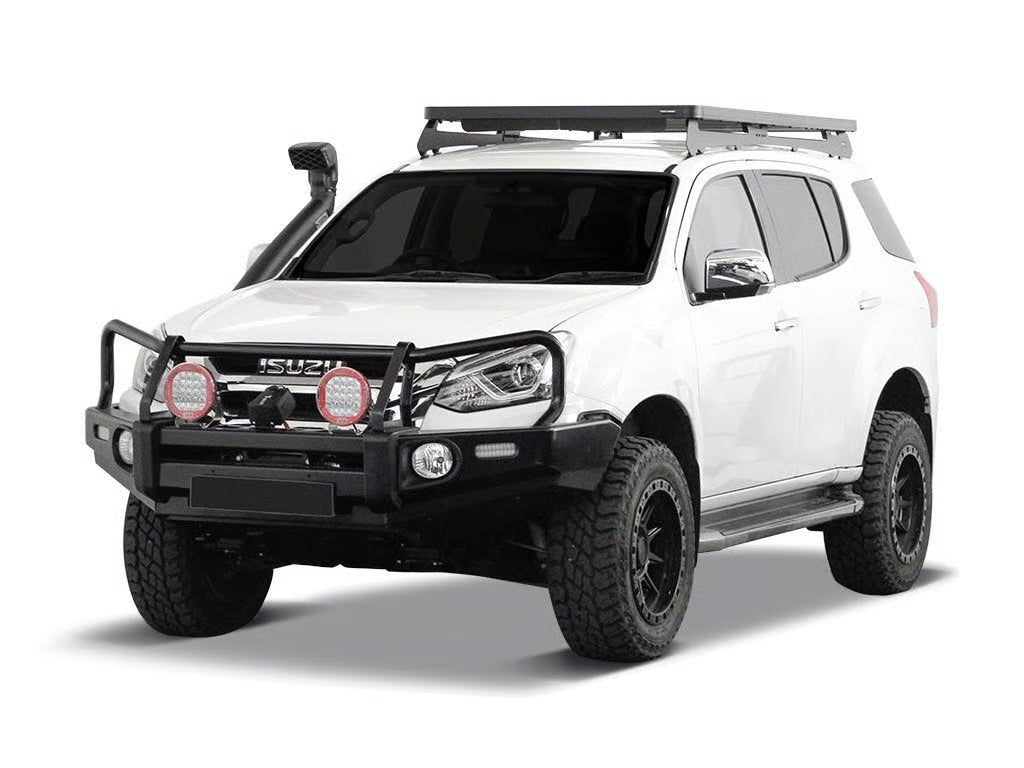

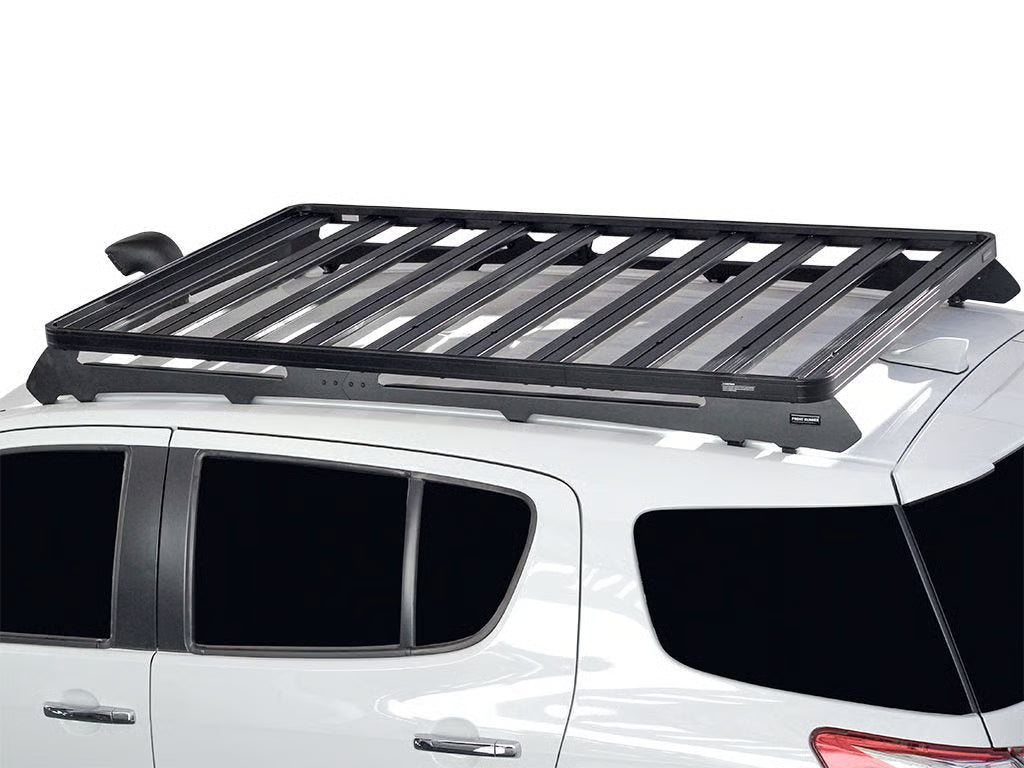

This 1964mm/77.3" long, full-size, Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Isuzu MU-X. Easily installs using the existing factory mounting points. No drilling required.
Note: This Rack Kit is only suitable for vehicles that are equipped with existing roof rails.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack (such as Front Runner tables).
These Foot Rails contain 2 openings to access a Front Runner under rack mount table (1 smaller prep table and 1 larger camp size table).
All Front Runner Racks are backed by a Limited Lifetime Warranty.
Consisting of:
1 x FAIM001 - Isuzu MU-X Foot Rails
1 x RRSTD10 - Slimline II Tray - 1255mm(W) x 1964mm(L)
Material used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 34kg (74lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicle's roof.
Shipping Dimensions:
Width: 455mm (18")
Length: 1610mm (63")
Height: 240mm (9")
Shipping Weight:
Weight: 39.3kg (86.5lbs)
