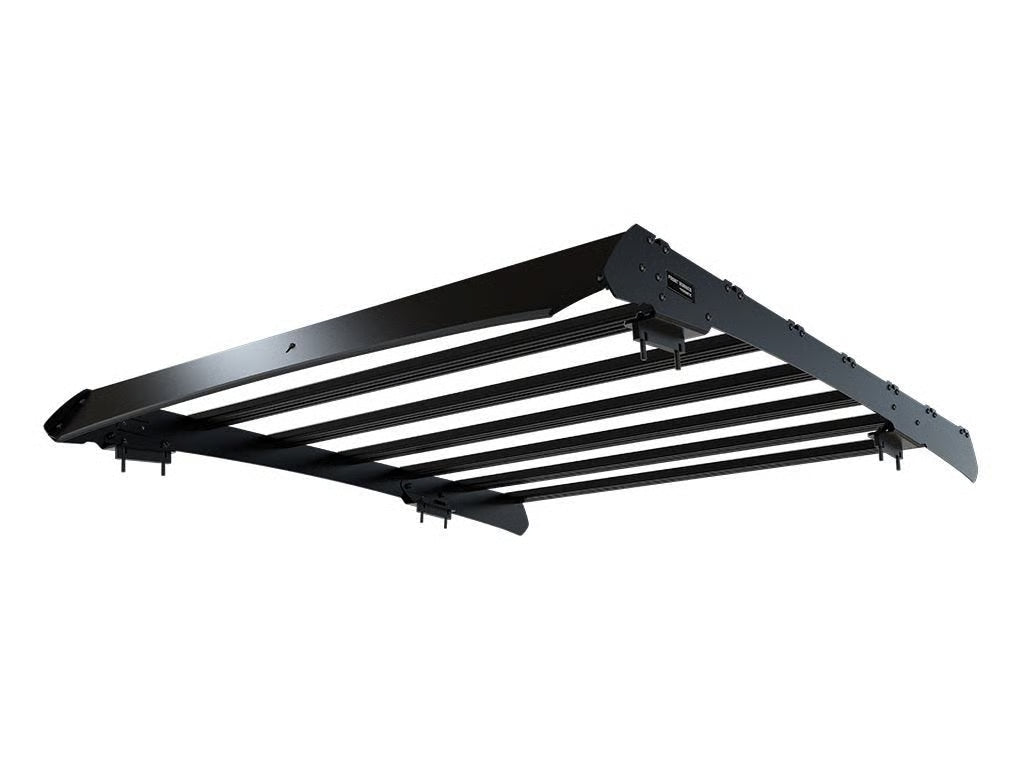

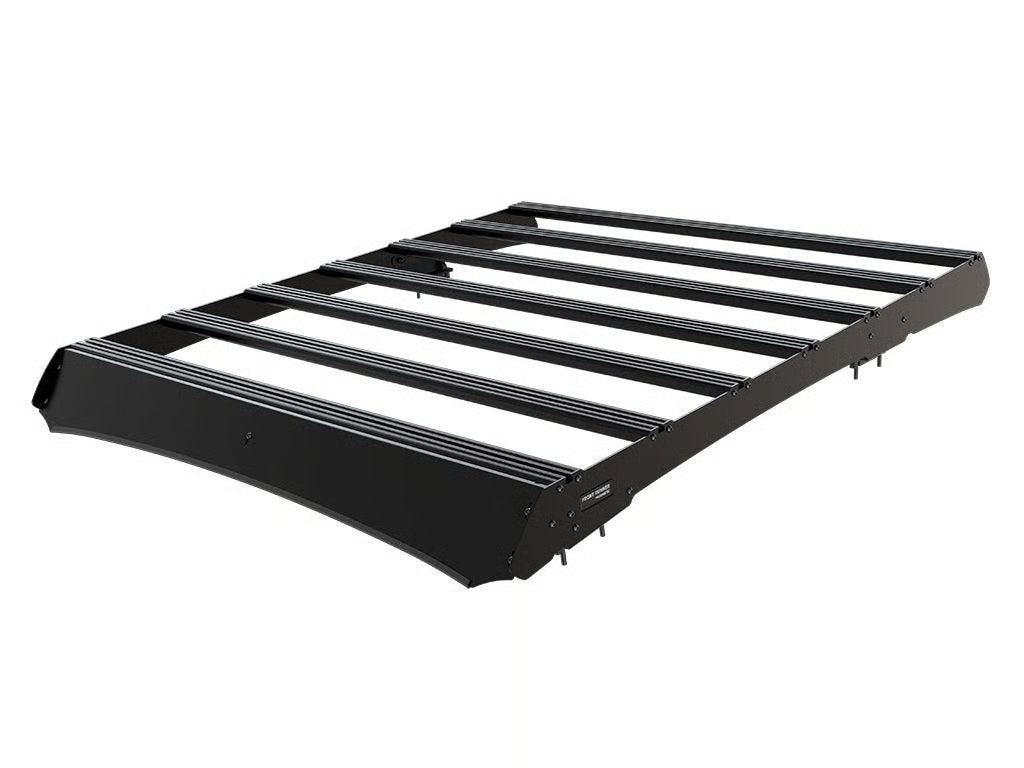

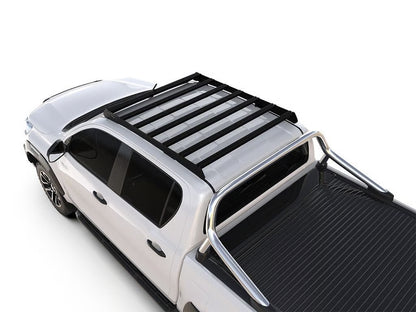

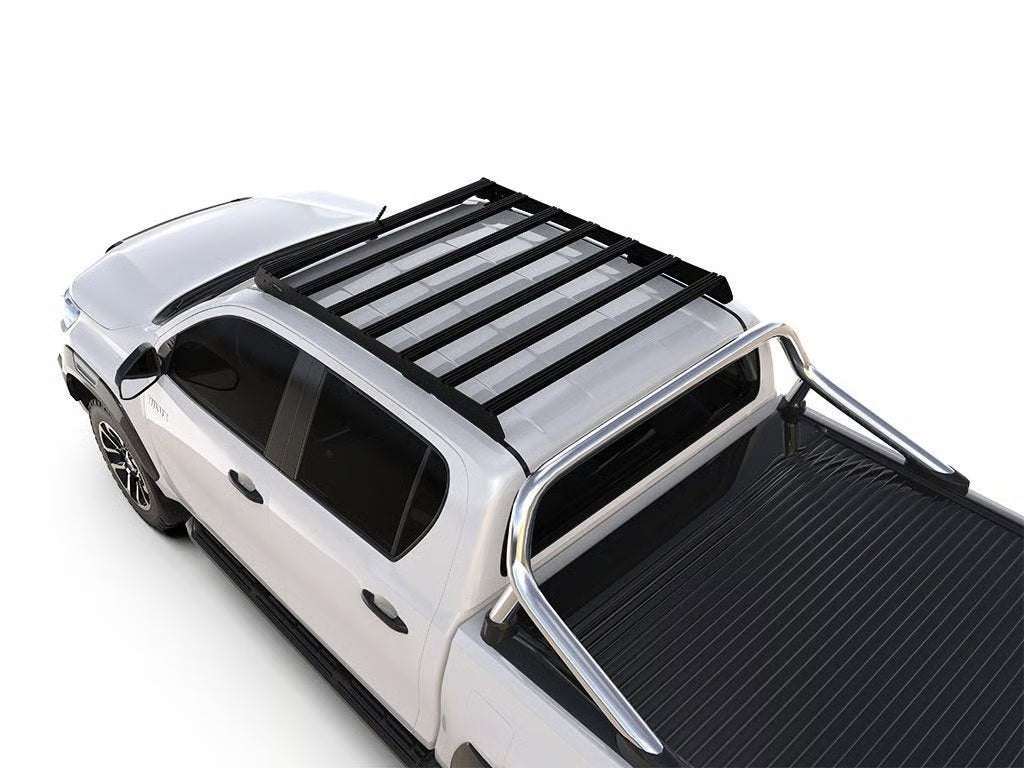

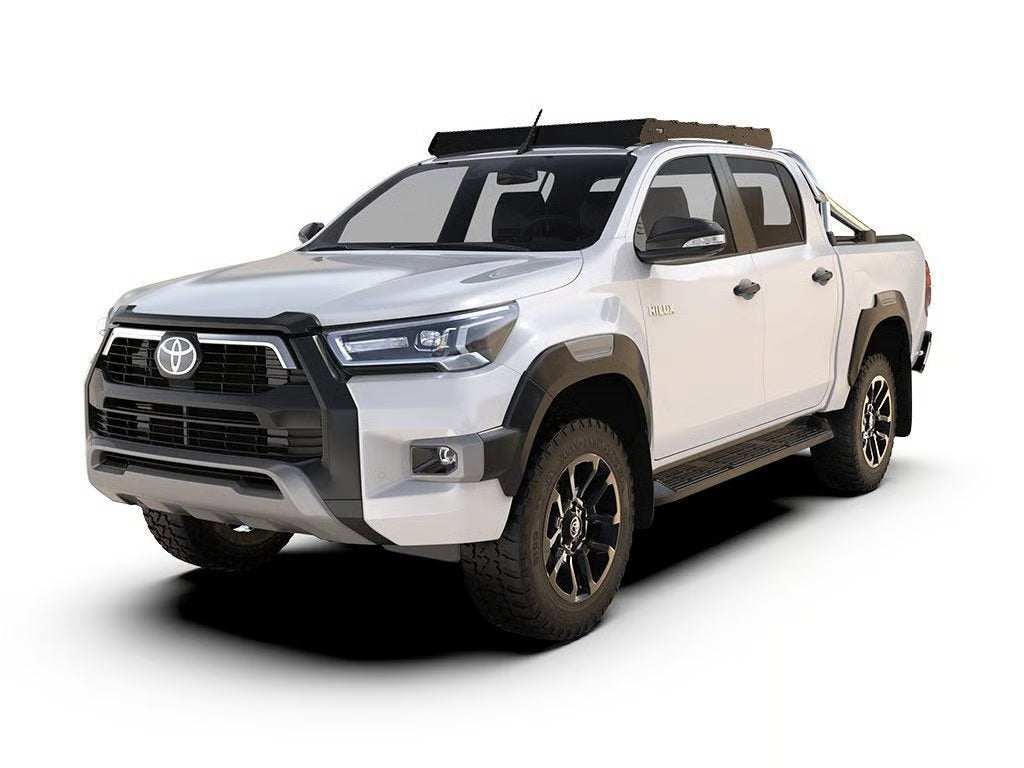

Toyota Hilux Double Cab (2016-Current) Slimsport Roof Rack Kit

• This low-profile flat deck Slimsport rack has a load-carrying area of 1404mm (55.3") x 1176mm (46.3").
• The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
• The high-strength aluminum slats have T-slots suitable for all Front Runner Dometic top mount accessories.
• Easily add on the Slimsport Side Mount Accessory Bracket / Small for most Front Runner Dometic side mount accessories (sold separately).

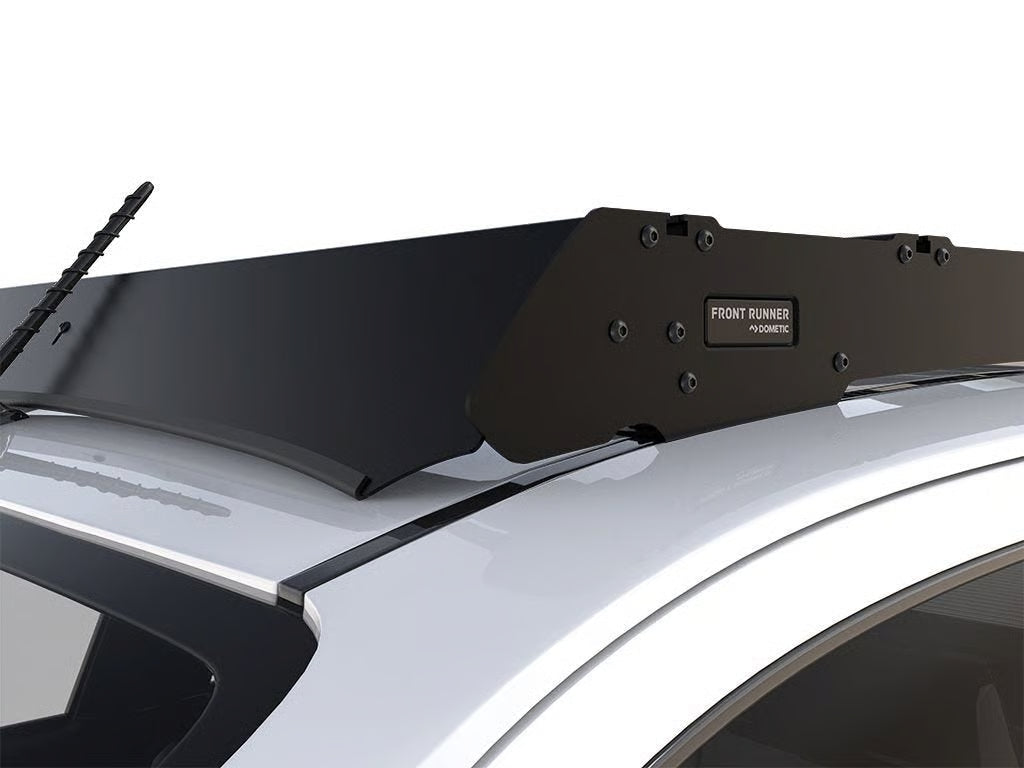

• The included standard full fairing with rubber edge trim, makes the rack ultra-quiet.
• Need a light bar? The optional light bar fairing Toyota Hilux H48 DC (2022-Current) Slimsport Rack Wind Fairing (sold separately) has a 40" cutout to allow use of 40" LED Slim Light Bar VX1000-CB SM / 12V24V / Single Mount (sold separately).
• Fitment guide and all mounting hardware included.
• Note: Drilling required.
• Note: Under Rack Tables are not compatible with the Slimsport rack kit range.
• Note: Some side mount accessories are not suited for low profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.
• All Front Runner Dometic Racks are backed by a Limited Lifetime Warranty.

Consisting of:
1 x KSTH003 - Toyota Hilux DC (2016-Current) Slimsport Tray
1 x RRAC386 - Toyota Hilux DC (2016-Current) Slimsport Rack Wind Fairing

Material used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 28kg (61.73lbs)

Assembled Rack Kit Dimensions:
1404mm (55.3") L x 1176mm (46.3") W x 111mm (4.4") H

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.

Shipping Dimensions:
Width: 325mm (13")
Length: 1700mm (67")
Height: 225mm (9")

Shipping Weight:
Weight: 28kg (62lbs)
